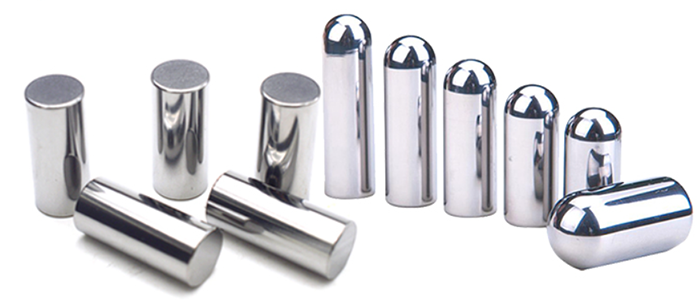

硬质合金柱齿
硬质合金柱钉

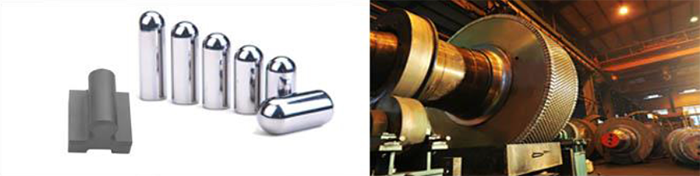

用途硬质合金（钨钢）柱钉：主要用在高压辊压机的对辊机上，用于金属矿石破碎，水泥熟料粉磨、水泥生料的粉磨，矿渣、铜渣粉磨等，高压辊磨机钨钢柱钉辊面是在原来堆焊和离心浇铸复合辊面的基础上升级研发的产品他的使用寿命大幅提高！辊压机柱钉性能优劣决定辊压机运行状况，辊压机的良好运行需要优质硬质合金柱钉保障，我司经过多年和辊压机设备商和水泥矿山破碎使用商家合作，已拥有完备的合金柱钉生产工艺质量稳定，且规格形状多样也可根据图纸定做！我司钨钢柱钉有着高硬度和高抗压强度，超耐磨，抗疲劳，连续工作时间长，破碎效率高、能耗低、破碎后制品颗粒均匀、工况污染小环保的特点，保证客户辊压机使用寿命。我公司根据客户不同使用环境，提供适用的硬质合金辊压机柱钉材质牌号。
硬质合金牌号表
The Chart of Grade used in Mining Industry
| 牌号 | 钴含量 | 物理机械性能 | 推荐使用范围 | ||
| Grade | Cobalt Content | Physical & mechanical properties | Application Recommended | ||
| % | 密度 | 硬度 | 抗弯强度 | ||
| Density | Hardness | TRS | |||
| g/cm3 | HRA | N/mm2 | |||
| HK05 | 6 | 14.95 | 90.5 | 2800 | 用于制造冲击回转凿岩机球齿钎头和潜孔钻头,适用于凿进中硬岩层以及高磨蚀性岩层 |
| HK06 | 6 | 14.95 | 90.2 | 2900 | |
| HK07 | 6.5 | 14.9 | 89.5 | 2900 | |
| YA85 | 8 | 14.75 | 88.8 | 2800 | 用于制造要求韧性较好的冲击回转凿岩机球齿钎头及潜孔钻头，适用于凿进坚硬岩层 |
| YG8K | 8 | 14.75 | 88.5 | 2700 | |
| HK09 | 9 | 14.6 | 87.5 | 2600 | |
| HK08C | 8 | 14.7 | 86 | 2200 | 于凿进坚硬岩层 |
| HK10 | 10 | 14.5 | 88.3 | 3200 | |
| HK10S | 10 | 14.5 | 87.5 | 3000 | |
| HK11 | 11 | 14.4 | 87.8 | 3000 | 用于制造冲击回转重型凿岩机用球齿钎头以及牙轮钻头，油井钻头和截煤齿 |
| HK11C | 11 | 14.4 | 86 | 2700 | |
| HK13 | 13 | 14.2 | 87.5 | 3200 | |
| HK13C | 13 | 14.2 | 85.8 | 2700 | |
| HK15 | 15 | 14 | 85 | 2800 | |
| HK16 | 16 | 13.95 | 86 | 3000 | |
The various grades for mineral cemented carbide inserts in our company can satisfy the different needs of our clients. Any special grade can be designed according to customer’s requirements too.
Buttons are dibided into the following categories based on the shape of the top part
|
HQ型--球形齿 |
|
HQ--Round top Button |
|
HZ型--锥形齿 |
|
HZ--Conical Button |
|
HP型--平顶齿 |
|
HP--Flattop Gage Button |
|
HX型--楔形齿 |
|
HX--Crested Chisel |
|
HB型--边楔齿 |
|
HB--Wedge Crested Chisel |
|
HS型--勺形齿 |
|
HS--Scoop Chisel Button |
|
HD型--弹形齿 |
|
HD--Ballistic Button |
|
HJ型--镐形截煤齿 |
|
HJ--Point-attack pick bit |
| 直径 | 高度 | ||
| Diameter | Height | ||
| Nominal size | Tolerance | Nominal size | Tolerance |
| ≤１０ | ±０.１０ | ≤20 | ±０.１０ |
| ＞１０ | ±０.１５ | ＞20 | ±０.１５ |
球形齿Round top Button
| 型号 Type | 尺寸 Dimension（mm） | |||
| Type | D | H | ||
| HQ0810 | 8.3 | 10 | ||
| HQ0910 | 9 | 10 | ||
| HQ0913 | 9 | 13 | ||
| HQ1010 | 10.2 | 10.5 | ||
| HQ1014 | 10 | 14 | ||
| HQ1115 | 11.3 | 15.9 | ||
| HQ1217 | 12 | 17 | ||
| HQ1220 | 12 | 20 | ||
| HQ1319 | 13 | 19 | ||
| HQ1313 | 13.12 | 13.5 | ||
| HQ1420 | 14 | 20 | ||
| HQ1424 | 14 | 24 | ||
| HQ1517 | 15 | 17 | ||
| HQ1623 | 16 | 23 | ||
| HQ1825 | 18 | 25.5 | ||
| HQ2028 | 20 | 28 | ||
| HQ2232 | 22 | 32 | ||
| HQ2640 | 26 | 40 | ||
| 型号 Type | 尺寸 Dimension（mm） | |||
| D | H | h | θ | |
| HZ0812 | 8.3 | 12.1 | 8.4 | 70 |
| HZ0912 | 9 | 12.4 | 8 | 60 |
| HZ0914 | 9 | 14 | 10 | 84 |
| HZ1028 | 10 | 28 | 20 | 59 |
| HZ1015 | 10.2 | 15 | 10.5 | 80 |
| HZ1218 | 12 | 18 | 9.5 | 55 |
| HZ1222 | 12 | 22 | 12.7 | 52 |
| HZ1319 | 13 | 19 | 11.8 | 55 |
| HZ1320 | 13 | 20 | 12.9 | 70 |
| HZ1416 | 14 | 16 | 6.2 | 56 |
| HZ1420 | 14 | 20 | 12 | 51 |
| HZ1422 | 14 | 22 | 14.2 | 70 |
| HZ1625 | 16.3 | 25 | 15.6 | 70 |
平顶齿 Flattop Gage Button
| 型号 Type | 尺寸 Dimension（mm） | |
| D | H | |
| HP0504 | 5.4 | 4.8 |
| HP0605 | 6.4 | 5.5 |
| HP0807 | 8.12 | 7 |
| HP1008 | 10.12 | 8 |
| HP1210 | 12.12 | 10 |
| 型号 Type | 尺寸 Dimension（mm） | ||||
| D | H | h | β | γ | |
| HX0810 | 8.2 | 10 | 6.5 | 66 | 35 |
| HX0912 | 9.12 | 12 | 7.5 | 66 | 35 |
| HX1015 | 10.12 | 15 | 8 | 59 | 40 |
| HX1114 | 11.12 | 14 | 8 | 82 | 50 |
| HX1217 | 12.12 | 17 | 9 | 51.5 | 40 |
| HX1318 | 13.13 | 18 | 12 | 75 | 36 |
| HX1419 | 14.12 | 19 | 12 | 75 | 40 |
| HX1420 | 14.12 | 20 | 13 | 71 | 40 |
| HX1519 | 15 | 19.8 | 11.8 | 66 | 40 |
| HX1621 | 16.12 | 21 | 13 | 73 | 40 |
| HX1826 | 18.12 | 26 | 15 | 56 | 40 |
| HX2032 | 20.6 | 32 | 16.5 | 56 | 40 |
| HX2536 | 25.12 | 36.5 | 20 | 56 | 40 |
边楔齿 Wedge Crested Chisel
| 型号 Type | 尺寸 Dimension（mm） | |||||
| D | H | h | α° | β° | γ° | |
| HB1217 | 12 | 17 | 11 | 20 | 70 | 40 |
| HB1419 | 14 | 19 | 12 | 20 | 75 | 40 |
| HB1520 | 15 | 20 | 12.5 | 20 | 75 | 40 |
| HB1621 | 16 | 21 | 14 | 20 | 70 | 40 |
| HB1924 | 19 | 24 | 15 | 20 | 70 | 40 |
| HB2230 | 22 | 30 | 17 | 20 | 70 | 40 |
勺形齿 Scoop Chisel Button
| 型号 Type | 尺寸 Dimension（mm） | ||||||
| D | H | h | R1 | R2 | R3 | β | |
| HS0915 | 9.7 | 15.4 | 9 | 8 | 0.8 | 9.56 | 30 |
| HS1017 | 10.7 | 17 | 10 | 8 | 1 | 10.5 | 30 |
| HS1217 | 12.13 | 17 | 10 | 12 | 2 | 20 | 36 |
| HS1420 | 14 | 20.5 | 10.5 | 9.77 | 1.5 | 16 | 36 |
| HS1421 | 14.13 | 21 | 12 | 12 | 2 | 20 | 36 |
| HS1620 | 16.12 | 20.5 | 14 | 20 | 2 | 28 | 30 |
| HS1622 | 16 | 22.7 | 13 | 9 | 1.5 | 18 | 30 |
| HS1623 | 16 | 23 | 11.7 | 16 | 2.2 | 25 | 30 |
| HS1624 | 16 | 24 | 12.8 | 15 | 2.3 | 24 | 30 |
| HS1928 | 19.12 | 28 | 14 | 28 | 2 | 28 | 30 |
| HS1930 | 19.12 | 30 | 15 | 32 | 2 | 30 | 30 |
弹形齿 Ballistic Button
| 型号 |
尺寸（mm） Dimension（mm） |
||||
| Type | D | H | h | SR1 | SR2 |
| HD0710 | 7.5 | 10 | 5.5 | 1.5 | 9 |
| HD0811 | 8.5 | 11 | 6.5 | 1.5 | 9 |
| HD0914 | 9.6 | 14 | 9 | 2 | 12 |
| HD1016 | 10.5 | 16.2 | 10.8 | 3 | 12 |
| HD1218 | 12.4 | 18 | 11.9 | 3 | 16 |
| HD1320 | 13.2 | 20 | 14.3 | 3.5 | 12 |
| HD1419 | 14.3 | 19 | 12.4 | 3.9 | 12.7 |
| HD1622 | 16.5 | 22 | 9.5 | 4.8 | 42.5 |
镐形截煤齿 Point-attack Pick Bit
| 型号 Type | 尺寸 Dimension（mm） | ||||||
| D | d | H | h | SR1 | SR2 | e | |
| HJ1523 | 15 | 3.8 | 23 | 15.5 | 1.5 | 35 | 2 |
| HJ1726 | 17 | 3.8 | 26.5 | 12 | 1.75 | 40 | 4 |
| HJ2228 | 22 | 3.8 | 28 | 12 | 2 | 44 | 6 |
| HJ2532 | 17 | 3.8 | 32 | 12 | 2.2 | 48 | 8 |
牌号及性能:
| 牌号 | 晶粒度 | 黏结相 | 密度 | 硬度 | 强度(N/mm2) |
| HK30 | （um) | (%) | (g/cm3) | (HRA) | TRS |
| 1.0 | 14.5 | 14 | 88.5 | 3100 | |
规格(mm)
| 型号 | D | H | 毛坯公差 | |
| D | H | |||
| ZD1640 | 16.2 | 40 | 0/0.5 | ±0.3 |
| ZD1645 | 16.2 | 45 | 0/0.5 | ±0.3 |
| ZD1040 | 10.2 | 40 | 0/0.5 | ±0.3 |
| ZD1645 | 16.5 | 45 | 0/0.5 | ±0.3 |
*可按用户要求规格生产
Can be Customized According to Customer’ Requirements
