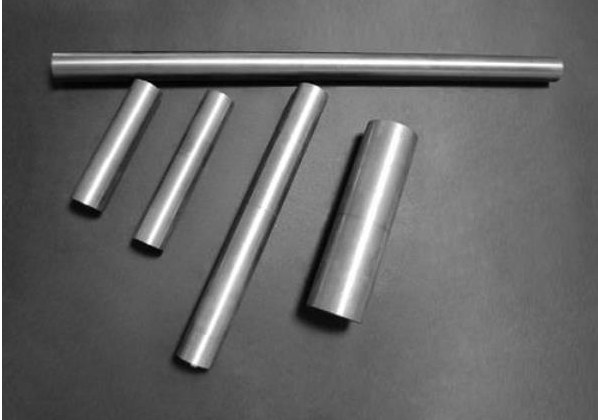

Tungsten Carbide Rod
Technical details
It can be used for counterweight, radiation shield, military industry, welding rod, mould, anti high pressure shielding part for deep-sea exploration instrument, deep machining (anti-seismic) cutter bar, etc.
| DESCRIPTION | SIZE | GRADE | |
| Carbie Rod | φ12.78x304.8 | 90W93W95W97W | |
| Carbie Rod | φ15.95x304.8 | 90W93W95W97W | |
| Carbie Rod | φ19.13x304.8 | 90W93W95W97W | |
| Carbie Rod | φ22.28x304.8 | 90W93W95W97W | |
| Carbie Rod | φ25.4x304.8 | 90W93W95W97W | |
| Carbie Rod | φ38.1x320 | 90W93W95W97W | |
| Carbie Rod | φ20.1x50 | 90W93W95W97W | |
| Carbie Rod | φ25x58 | 90W93W95W97W | |
| Carbie Rod | φ25.1x50 | 90W93W95W97W | |
| Carbie Rod | φ25.4x120 | 90W93W95W97W | |
| Carbie Rod | φ25.4x320 | 90W93W95W97W | |
Other Information
Common grades,compositions and properties of tungsten alloys:
| Class | 1 | 2 | 3 | 4 | |
| W % | 90 | 92.5 | 95 | 97 | |
| Density(g/ccd) | 16.85-17.25 | 17.15-17.85 | 17.75-18.35 | 18.25-18.85 | |
| Hardness(HRC) Max | 32 | 33 | 34 | 35 | |
| Ultimate bending strength | Ksi | 110 | 110 | 105 | 100 |
| mpa | 758 | 758 | 724 | 689 | |
|
yield strength at 0.2% off-set |
Ksi | 75 | 75 | 75 | 75 |
| mpa | 517 | 517 | 517 | 517 | |
| elonogation % | 5 | 5 | 3 | 2 |
