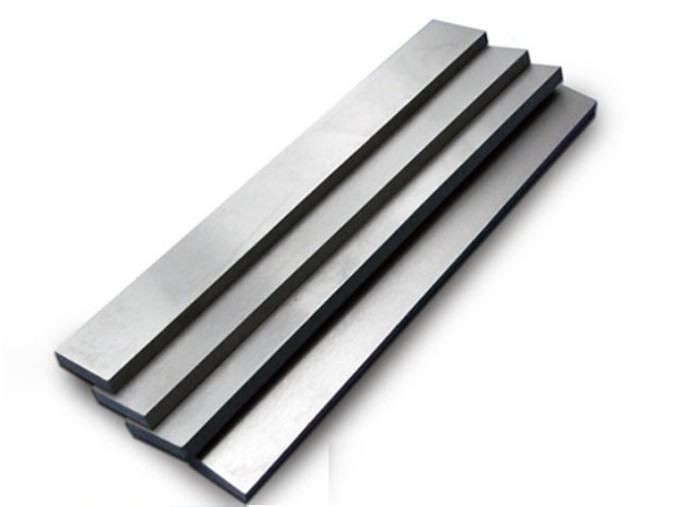

Tungsten Carbide Strips

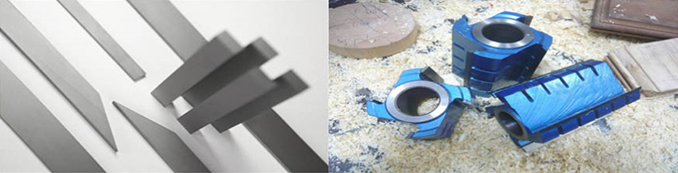

Tungsten carbide Strip is widely known as one kind of carbide cutting tools. Which is suitable for treating solid wood, shaving board and middle-density fiberboard. Cemented carbide strip can be used to make woodworking tools, such as forming tool, reamer, serrated knife blade and various blades.

Recommended Grade:

Grade	Grain   size (μm)	Density (g/cm³)	Hardness (>=HRA)	TRS (>=MPA)
ZF15	0.6	14.7	92.2	3500
ZF05	0.4	14.8	93	3300
LZ20	1.4	14.75	89.5	3200
LMG40	1	14.82	91	3100

Dimension and Tolerance: mm
Length: 330 or 310 mm or cut to lengths upon requirement.

Length (mm)	Tolerance	Width (mm)	Tolerance	H	Tolerance
<=80	0	<=10	0	<=3.0	0
>80~100	0	>10~20	0	>3~5	0
>100~150	0	>20~30	0	>5~8	0
>150~200	0	>30~40	0	>8~10	0
>200~300	0	>50	0	>10	0
>300	0	----	---

Strips straightness size (mm)

Length (mm)	Front straightness (Tol)	Side Straightness (Tol)
<=80	<=0.25	<=0.3
>80~100	<=0.30	<=0.35
>100~150	<=0.35	<=0.35
>150~200	<=0.35	<=0.4
>200~300	<=0.40	<=0.4
>300	<=0.50	<=0.5
