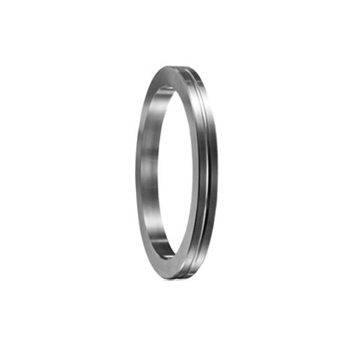

Tungseten Carbide Pinch Roll
Technical details
The pinch roll device is used to help the head of wire rod rolled by finishing mill enter into the wire drawing machine to form a circle, and prevent the high-speed running wire rod tail from speeding up due to breaking away from the restraint and causing blocking accidentBrand List
| 分类 | 牌号 | 粘结剂 | 硬度/HRA | 密度（g/cm3) | 抗弯强度Mpa | 抗压强度Mpa | |||
| Classification | Grade | Binder(wt%) | Hardness | Density | TRS | Compressive Strength | |||
| HY07 | 6 | 88.5 | 14.9 | 2800 | 4300 | ||||
| DG1X | 8 | 88.0 | 14.7 | 2850 | 4100 | ||||
| DG06 | 10 | 86.5 | 14.5 | 2850 | 3800 | ||||
| DG1A | 10 | 87.0 | 14.5 | 2800 | 3900 | ||||
| DG2 | 13 | 58.0 | 14.2 | 2700 | 3700 | ||||
| DG-series | DG2A | 15 | 84.5 | 14.0 | 2650 | 3500 | |||
| (Co-Ni-Cr) | DG4 | 18 | 83.5 | 13.7 | 2580 | 3300 | |||
| DG5 | 20 | 82.0 | 13.6 | 2580 | 3100 | ||||
| DG6 | 25 | 80.0 | 13.1 | 2500 | 2900 | ||||
| DG7 | 27 | 78.5 | 12.9 | 2400 | 2700 | ||||
| DG9 | 30 | 77.5 | 12.7 | 2300 | 2600 | ||||
| DG2-M | 13 | 86.7 | 14.2 | 2750 | 3900 | ||||
| M-series | DG2A-M | 15 | 85.3 | 14.1 | 2750 | 3800 | |||
| (Cobalt) | DG4A-M | 18 | 84.5 | 13.7 | 2800 | 3500 | |||
| DG5A | 22 | 81.5 | 13.4 | 2650 | 3000 | ||||
| DG5-M | 20 | 83.5 | 13.5 | 2600 | 3300 | ||||
| DG6-M | 25 | 82.5 | 13.1 | 2600 | 3100 | ||||
Other information
| Grade | Cerametal | Sandvik | Kennametal | Sintermet | Mistubishi | Saramant | Taegutec | ZCC | |||
| old | new | old | new | old | new | ||||||
| DG1F | HY07 | CE3 (CTC12A) | H6T | MN0 | VG07 | KHR01 | T065 | ||||
| DG1X | SM80 | GA5210 | GX210 | ||||||||
| DG1A | CE51 (CTC20A) | C10C | MN04 | SM63 | GA5315 | GX315 | VN10 | KHR05 | T11L | YGR20 | |
| DG06 | |||||||||||
| DG2 | CE65 (CTC20A) | GA5320 | GX320 | KHR30 | T14L | YGR25 | |||||
| DG2A | CE79 (CTC30A) | C15C | MN2 | SM59 | GA5328 | GX330 | VN40 | KHR10 | T15M | YGR30 | |
| DG2-M | YGH25 | ||||||||||
| DG2A-M | YGH30 | ||||||||||
| DG4 | CE103 (CTC35A) | GA5335 | GX335 | VN45 | KHR40 | T17L | YGR40 | ||||
| DG4-M | YGH40 | ||||||||||
| DG5 | CE107 (CTC40A) | C20C | MN4 | SM60 | GA5540 | GX540 | VN50 | KHR60 | T20M | YGR45 | |
| DG5A | HY22 | CE112 (CTC44A) | GA5250 | KHR70 | |||||||
| DG5-M | YGH45 | ||||||||||
| DG5A-M | YGH50 | ||||||||||
| DG6 | CE114 (CTC50A) | C25C | RCV5 | SM61 | GA5350 | GX350 | KHR75 | T25H | YGR55 | ||
| DG6-M | YGH55 | ||||||||||
| DG7 | G55 | GA5355 | KHR80 | ||||||||
| DG7-M | |||||||||||
| DG9 | CE115 (CTC60A) | C30T | RCV5 | SM62 | GA7365 | GX365 | VN77 | KHR90 | T30M | YGR60 | |
| DG9A | HY30 | H30P | MN6 | VN76 | KHR90A | ||||||
| DG9-M | YGH60 | ||||||||||
