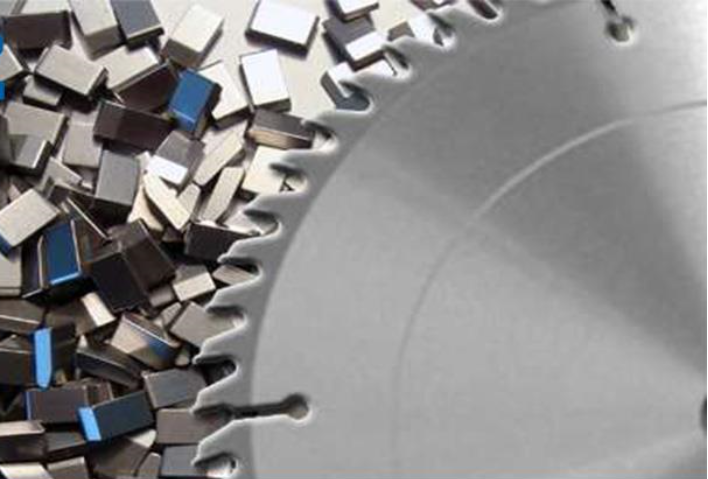

Decho Carbide sawtooth blades specialize in cutting all kinds of grass, wood, composite wood, aluminum, and hard metals.
|
牌号 Grade |
晶粒度Grain size(μm) |
密度density (g/cm³) |
硬度 hardness (>=HRA) |
抗弯强度 Bending strength (>=MPA) |
|
ZF15 |
0.6 |
14.7 |
92.2 |
3500 |
|
ZF05 |
0.4 |
14.8 |
93 |
3300 |
|
LZ20 |
1.4 |
14.75 |
89.5 |
3200 |
|
LMG40 |
1 |
14.8 |
90.5 |
3100 |

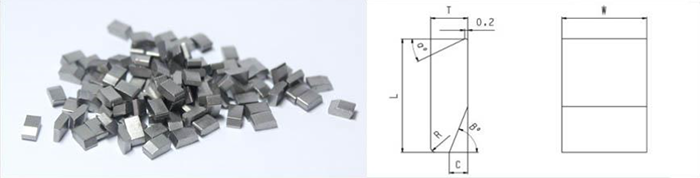

Dimensions and tolerances
|
unit( mm ) |
|||||
|
长度 length |
公差 tolerance |
宽度 width |
公差 tolerance |
厚度 thickness |
公差 tolerance |
|
<=5 |
-1 |
<=2.0 |
0 |
<=1.5 |
0 |
|
>5~7 |
-1 |
>2.0~3.5 |
-1 |
>1.5~2.5 |
-1 |
|
>7~9 |
-1 |
>3.5~4.5 |
-1 |
>2.5~4.0 |
-1 |
|
>9~13 |
-1 |
>4.5~6.0 |
-1 |
|
|
|
>13~15 |
-1 |
>6.0~15 |
-1 |
|
|
Various specifications of products can be produced according to the drawings provided by customers.
