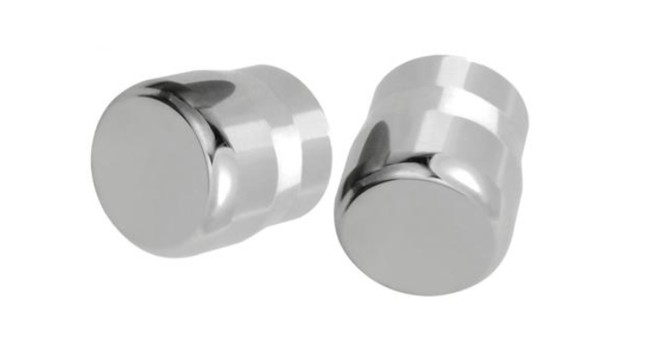

Carbide wire drawing dies, also known as TC wire drawing dies (Tungsten Carbide), are made from tungsten carbides of superior quality which are resistant to high heat and shock. At the same time, LZ cemented carbide drawing pellet are very cost effective compared with similar products.

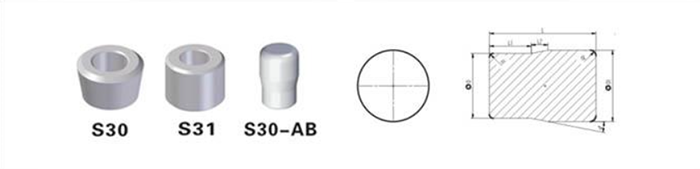

Type: S11, LV，LE, W, LSV,and various sizes are as per China new technical standard. We can make suggestions of suitable grades for customers' usage.
|
Grade |
Grain size(μm) |
Density(g/cm³) |
Hardness(>=HRA) |
TRS(>=MPA) |
|
LL20 |
0.8 |
14.42 |
91.0 |
3000 |
|
LL50 |
0.6 |
14.85 |
92.0 |
2800 |
|
LZ10 |
1.2 |
14.90 |
90.0 |
2400 |
|
LZ20 |
1.6 |
14.7 |
89.0 |
2800 |
(ID) Size and Tolerance
|
SIZE |
Tolerance |
SIZE |
Tolerance |
|
>10~20 |
+1.0 |
>20~30 |
+1.0 |
(OD) Size and Tolerance
|
SIZE |
Tolerance |
SIZE |
Tolerance |
|
>10~20 |
+1.0 |
>40~50 |
+1.2 |
|
>20~30 |
+1.2 |
>50~60 |
+1.2 |
|
>30~40 |
+1.2 |
>60.0 |
+1.2 |
(H) Size and Tolerance
|
SIZE |
Tolerance |
SIZE |
Tolerance |
|
>10~20 |
±0.40 |
>40~50 |
±0.60 |
|
>20~30 |
±0.50 |
>50~60 |
±0.70 |
