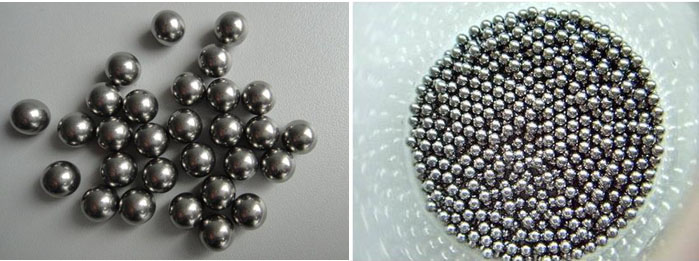

It is known as the smallest high-density ball in the field of tungsten carbide, which means it can be used in many applications, such as military tungsten balls (prefabricated fragments), as well as pellets used as shotguns, mainly for hunting birds and other small games.
Tungsten Carbide Ball Pressing Performance
|
Diameter（mm） |
3 |
5 |
6 |
7 |
8 |
9 |
10 |
|
Load（KN） |
10 |
40 |
60 |
70 |
85 |
100 |
115 |
|
The amount of deformation（%） |
≤40 |
||||||
|
Crushing |
No crack |
||||||
Product Specifications：
Common Specifications and Brand Numbers
|
Name |
Specifications |
Grade |
|
CARBIDE BALL |
Φ2.0 |
92.5W/95W/97W |
|
CARBIDE BALL |
Φ2.5 |
92.5W/95W/97W |
|
CARBIDE BALL |
Φ2.7 |
92.5W/95W/97W |
|
CARBIDE BALL |
Φ3.0 |
92.5W/95W/97W |
|
CARBIDE BALL |
Φ3.3 |
92.5W/95W/97W |
|
CARBIDE BALL |
Φ3.6 |
92.5W/95W/97W |
|
CARBIDE BALL |
Φ4.0 |
92.5W/95W/97W |
|
CARBIDE BALL |
Φ4.5 |
92.5W/95W/97W |
|
CARBIDE BALL |
Φ5.0 |
92.5W/95W/97W |
|
CARBIDE BALL |
Φ5.5 |
92.5W/95W/97W |
|
CARBIDE BALL |
Φ6.0 |
92.5W/95W/97W |
|
CARBIDE BALL |
Φ6.5 |
92.5W/95W/97W |
|
CARBIDE BALL |
Φ7.0 |
92.5W/95W/97W |
|
CARBIDE BALL |
Φ7.5 |
92.5W/95W/97W |
